HEAVY DUTY HYDROLIC DECOILER

  • Home
  • HEAVY DUTY HYDROLIC DECOILER

-: OUR PRODUCTS:--

HEAVY DUTY HYDROLIC DECOILER

  • 2T-10T: Wide range of heavy-duty coil load capacities with fully customizable specifications.
  • 500-1300 mm: Available in standard and customized material widths.
  • 0.2-4 mm: Reference material thickness range by configuration.
  • 400-550 mm: Common coil inner diameter range, custom sizes available.
  • VFD + LOOP: Optional speed synchronization for smooth downstream line operation.
  • Hydraulic: Mandrel expansion, loading, support, and retaining options.
  • Pneumatic hold arm: Optional pneumatic support arm for enhanced stability of heavy-gauge coils.
explore more explore more

Technical Specification

Model Max. Coil Weight Max Width Coil ID Adjustment Max Coil OD Expansion Type Power Centre Height Area occupied
(L*B*H)
HDA-2T 2 ton 500 400-550 1200 hydraulic motorized/ non-motorized 3 hp 1150mm 1500*1500*1900
HDA-3T 3 ton 700 400-550 1200 Hydraulic motorized/ non-motorized 3hp/
5hp 1150mm 1600*1600*2000
HDA-5T 5 Ton 1000 450-550 1200 Hydraulic motorized/ non-motorized 5hp 1350mm 2000*1450*1850
HDA-10T 10 Ton 1300 460-530 1200 Hydraulic Motorized/ non-motorized 7.5 hp

Customization : Custom inner diameter, outer diameter, width up to 1800 mm, and heavy-duty configurations up to 10T available as per customer requirements.

*Hydraulic De-coiler is available with an optional Pneumatic Hold-Down Arm, recommended for processing coils with material thickness of 1.8 mm and above.

*An optional Coil Car is also available for safe and efficient coil loading, as per customer requirements.

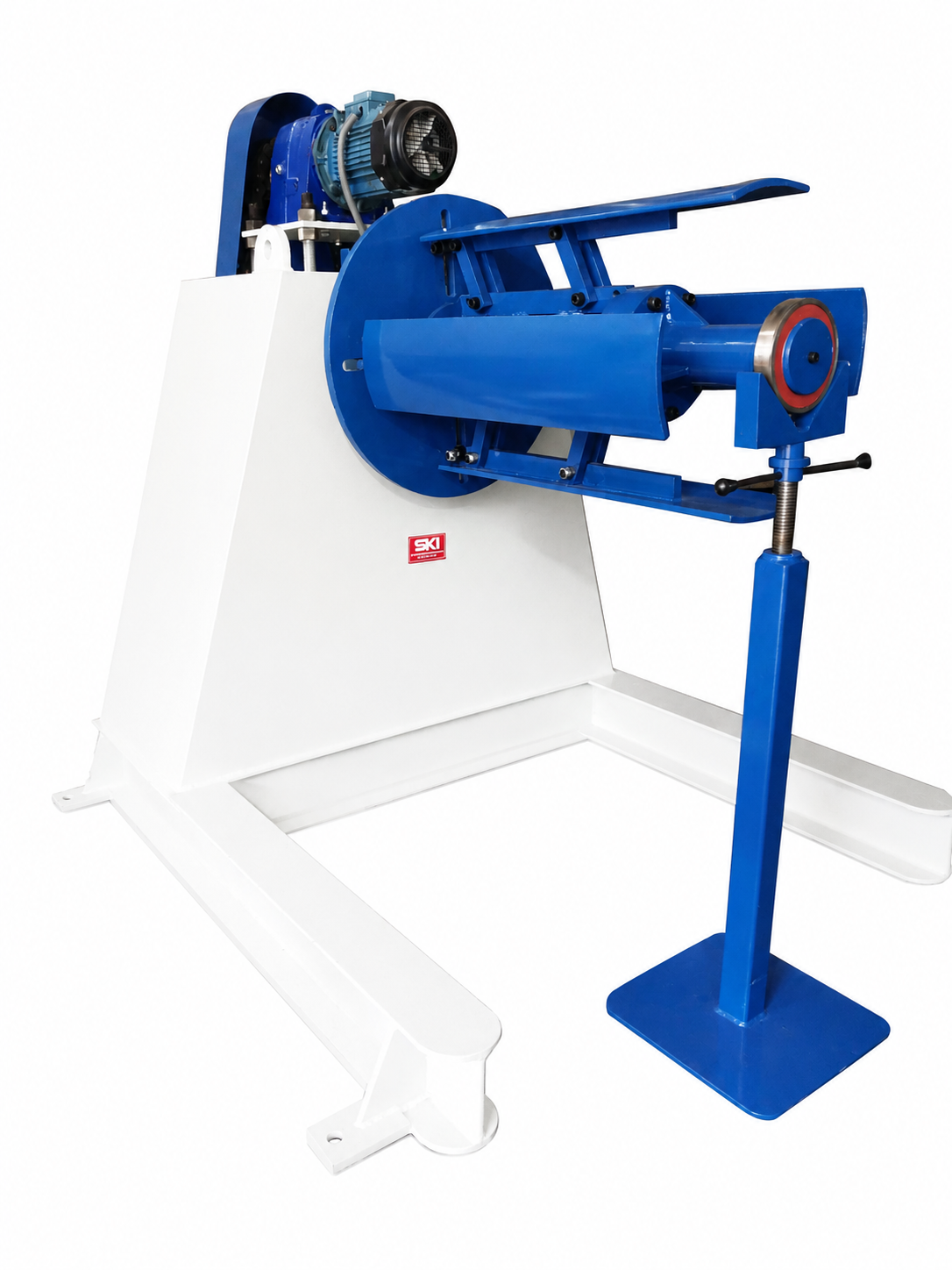

SDN-5t

Brand SKI FEEDER
Model No. SDN-5t
Capacity 5000
Max Width (mm) 800-1300
Coil ID Adjustment (mm) 450-550mm
Expansion Type HYDRAULIC
Power 5 HP
Centre Height From Floor 1350mm
Area Occupied (mm) 2000*1450*1850

Accessories for Decoiler

Standard and optional accessories

STANDERED ACCESSORIES

The standard accessory image is separated from the optional modules. Buyers can first see what comes with the machine, then review which optional devices should be added for heavy, wide, thick, or high-tension coils.

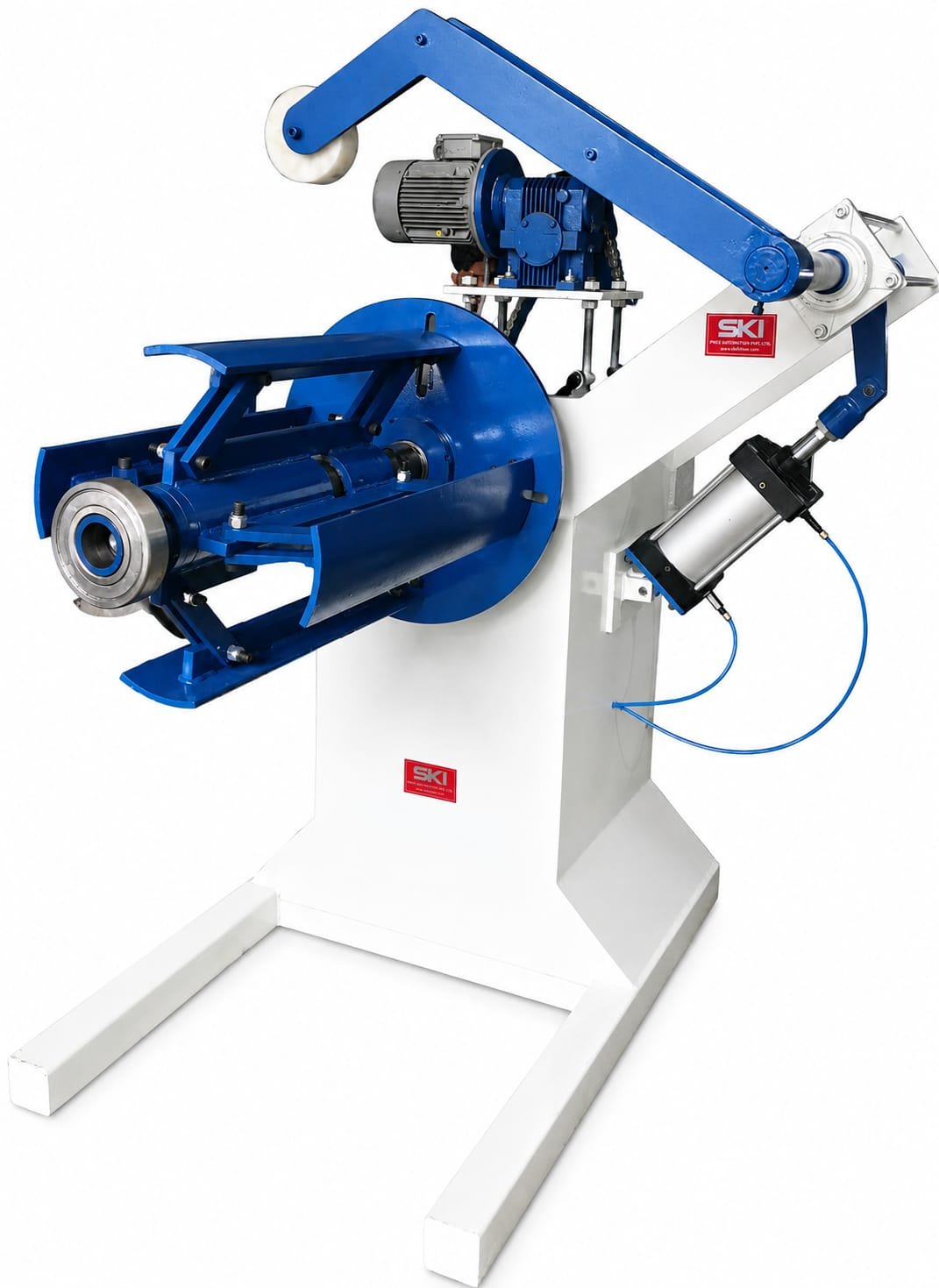

2-TON-PNEUMET-ARM

OPTIONAL ASSESSORIES SELECTED AS PER COIL

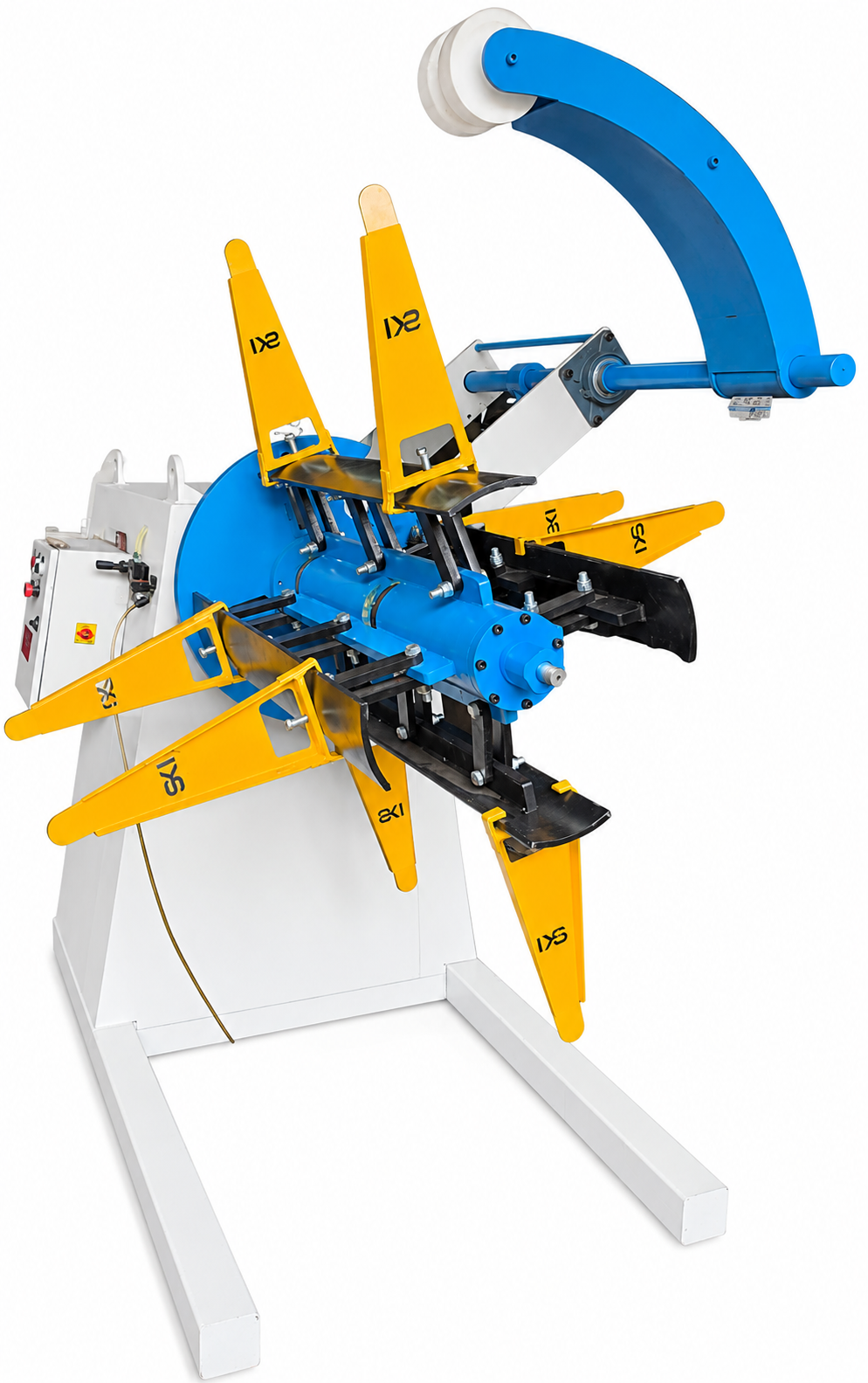

PNEUMETIC HOLD ARM

Applies constant pressure to the coil outer ring to reduce spring-back and coil loosening.
Recommended for material over 2.0 mm or high-yield strength coils.

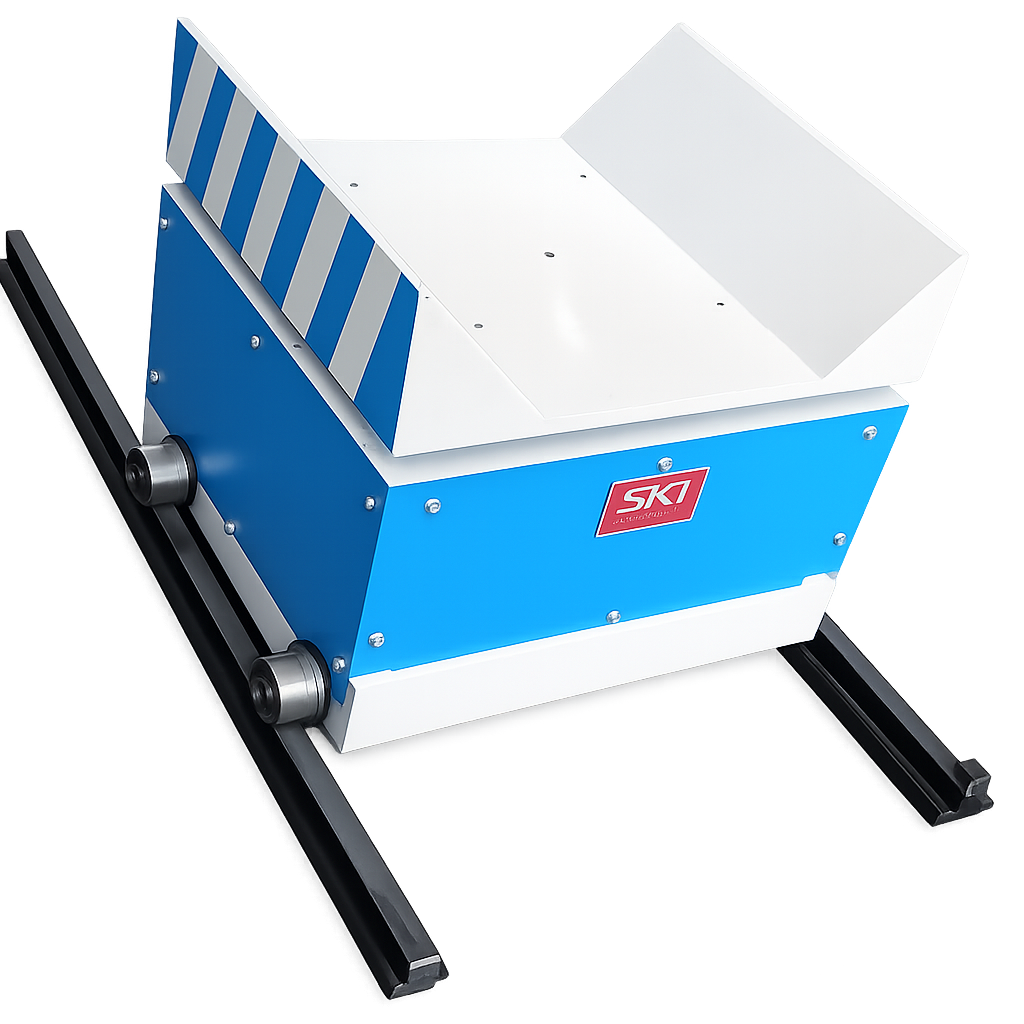

Coil Car

COIL CAR

Designed to lift and transfer heavy coils into perfect alignment with the

Shaft Stand

SHAFT STAND

Optional Shaft Support Stand recommended for more than 800 mm width coil for added shaft support and enhanced safety.
