Our MANUAL STOCK(Lead Screw )De-Coilers are available in capacities ranging from 200 kg to 3 Tons, making them ideal for light to medium-duty coil handling. The manually operated Lead Screw jaw expansion system ensures secure coil gripping, precise centering, and smooth unwinding for consistent material feeding. Available in both motorized and non-motorized versions, each unit can be customized to meet specific application and production requirements.
| Model | Max. Coil Weight | Max Width | Coil ID Adjustment | Max Coil OD | Expansion | Type | Power |
|---|---|---|---|---|---|---|---|
| SND-200 | 200 kg | 200 mm | 325–450 mm | 1200 mm | Manual | Motorized / Non-Motorized | ½ HP |
| SDN-400 | 400 kg | 300 mm | 300–540 mm | 1200 mm | Manual | Motorized / Non-Motorized | 1 HP |
| SDN-1T | 1 Ton | 400 mm | 360–560 mm | 1200 mm | Manual | Motorized / Non-Motorized | 2 HP |
| SDN-2T | 2 Ton | 400 / 500 mm | 400–550 mm | 1200 mm | Manual | Motorized / Non-Motorized | 3 HP |
| SDN-3T | 3 Ton | 500 / 700 mm | 400–550 mm | 1200 mm | Manual | Motorized / Non-Motorized | 3 HP / 5 HP |
| Brand | SKI FEEDER |
|---|---|
| Model No. | SDN-200 |
| Capacity | 200Kg |
| Max Width (mm) | 200 |
| Coil ID Adjustment (mm) | 320-450mm |
| Expansion Type | Lead Screw (Manual) |
| Power | 0.5 HP |
| Centre Height From Floor | 725mm |
| Area Occupied (mm) | 915*915*915 |
| Brand | SKI FEEDER |
|---|---|
| Model No. | SDN-500 |
| Capacity | 500Kg |
| Max Width (mm) | 300 |
| Coil ID Adjustment (mm) | 320-450mm |
| Max OD | 1100 |
| Expansion Type | Lead Screw (Manual) |
| Power | 0.5 HP |
| Centre Height From Floor | 725mm |
| Area Occupied (mm) | 915*915*915 |

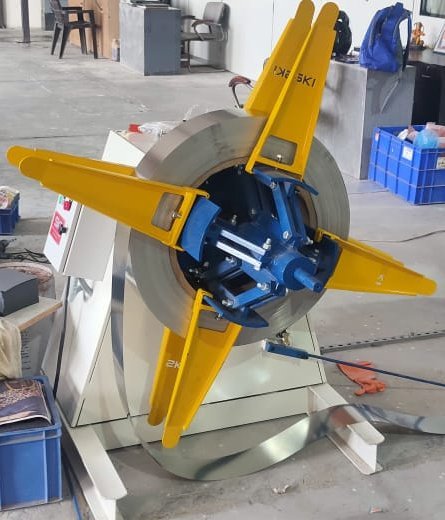

| Brand | SKI FEEDER |
|---|---|
| Model No. | SDN-1T |
| Capacity | 1000 kg |
| Max Width | 400mm |
| Coil ID Adjustment (mm) | 360-560mm |
| Expansion Type | Manual |
| Max Width (mm) | 400 / 500 |
| Power | 2 HP |
| Centre Height From Floor | 775 |
| Area Occupied (mm) | 1500*1500*1050 |

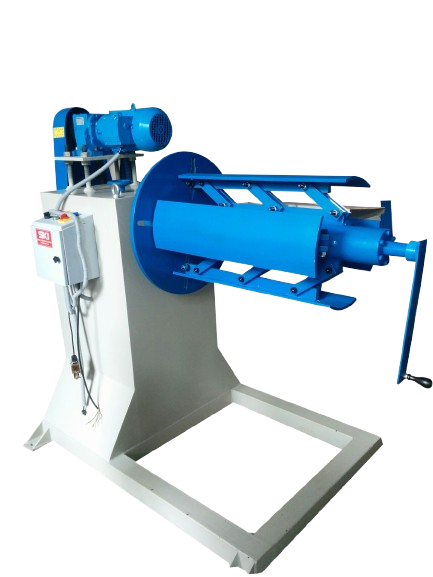

| Brand | SKI FEEDER |
|---|---|
| Model No. | SDN-2T |
| Capacity | 2000 Kg |
| Max Width (mm) | 400 / 500 |
| Coil ID Adjustment (mm) | 400-550mm |
| Expansion Type | Manual |
| Power | 3 HP |
| Centre Height From Floor | 1150MM |
| Area Occupied (mm) | 1500*1500*1900 |

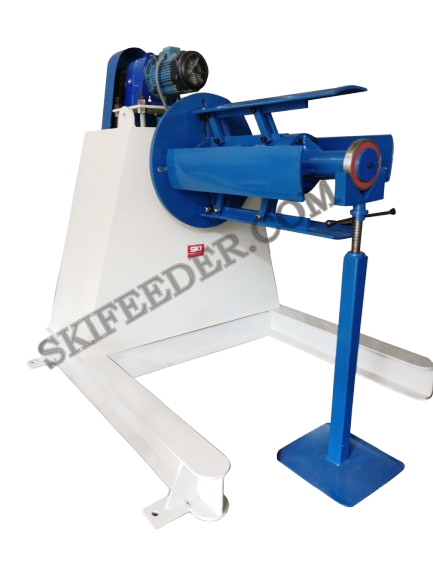

| Brand | SKI FEEDER |
|---|---|
| Model No. | SDN-3T |
| Capacity (KG) | 3000 |
| Max Width (mm) | 500-800 |
| Coil ID Adjustment (mm) | 400-550 |
| Expansion Type | Manual |
| Power | 3 HP / 5 HP |
| Centre Height From Floor | 1150mm |
| Area Occupied (L*B*H) (mm) | 1600*1600*2000 |

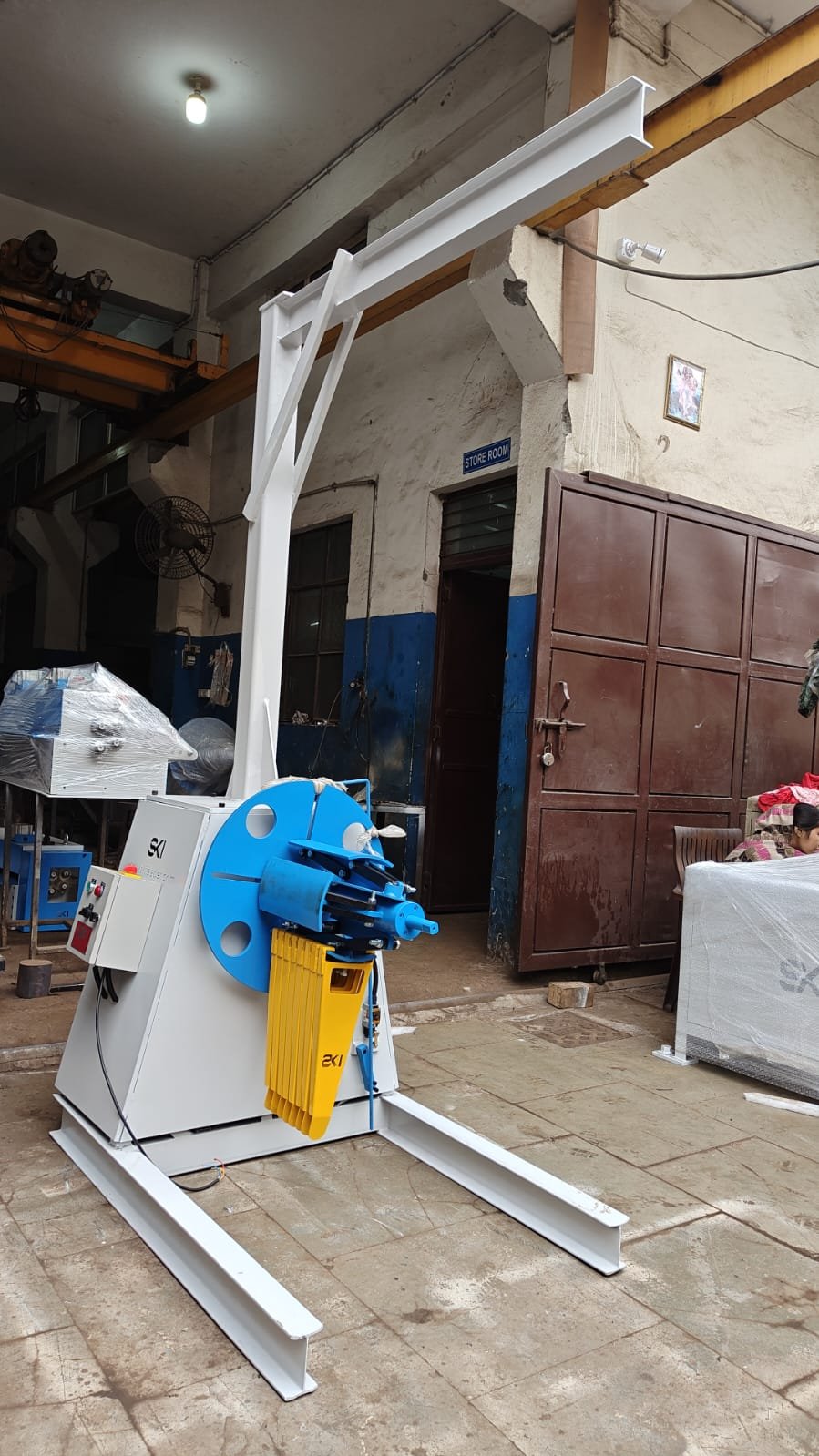

Standard accessories improve coil handling, ensure smooth feeding, and enhance operational efficiency.
| Brand | SKI FEEDER |
|---|---|
| Model No. | Customized |
| Capacity | Up to 1 Ton |
| Application | Coil Loading & Feeding |
| Loading Type | Integrated Coil Loader |
| Operation | Smooth & Controlled Feeding |
| Suitable For | Small to Medium Production Setups |
| Area Occupied | As Per Requirement |
SKI Automation Private Limited is a top-quality, innovative, and technologically advanced supplier of decoilers (also known as unwinders) for Indian manufacturers. SKI Automation Private Limited offers decoilers that meet strict standards and provide a high level of productivity , durability, accuracy, and dependability.
SKI Automation Private Limited offers customized decoilers that are designed for use in a variety of applications, such as sheet metal processing, press automation, automotive manufacturing, electrical parts manufacturing, and general manufacturing. SKI Automation Private Limited has a commitment to innovation and engineering excellence, and each decoiler is built-to-order according to the needs of each customer.
As a reputable supplier of Decoilers in India, SKI Automation Pvt. Ltd. provides their customers with high-quality industrial automation equipment across the various sectors of industry. Our advanced and durable Decoilers are designed for accurate operation; for this reason they will maintain their functionality for years to come while being required to perform in extreme industrial conditions.
Our complete line of Decoilers seamlessly processes raw material coil unwinding and feeding for continuous production facilities. In addition to meeting your particular machine requirements with our established distribution network and exceptional customer support, our Decoilers provide timely delivery and complete customer satisfaction in meeting the needs of customers across India that require reliable automation and metal working equipment.
As a leading trader of Decoilers in India, SKI Automation Pvt. Ltd. provides premium quality automation machines and tooling related to the industrial feeding requirements of today's manufacturers. Our Decoilers are extremely efficient, long lasting, and manufactured with the highest level of quality assurance, and therefore suitable for supplying the automotive, electrical, sheet metal, packaging, and engineering industries.
We utilize our expertise in industrial automation to provide you with reliable machinery that increases productivity, accuracy, and overall operational efficiency levels. Committed to a customer-oriented focus, competitive pricing, and the highest level of product quality, we continue to be a Business Partner to all industrial sectors in India for reliable Decoiler products.
